01 BLE PLATFORM

The factory's shared
location layer

Integrated real-time location infrastructure for plants, warehouses, staff, forklifts, pallets and shuttle vehicles. One infrastructure, many uses, a scalable architecture.

BLE RTLS (Real-Time Location System) locates staff, vehicles, equipment and assets indoors in real time or near real time. Broadcasts from BLE cards and tags are picked up by Gateway or Locator devices in the field and turned into position data by the central RTLS engine.

RTLS is not a single staff-tracking application; it is a digital infrastructure on which different assets become visible over one network. New tag types and new software modules can be added to that same network later.

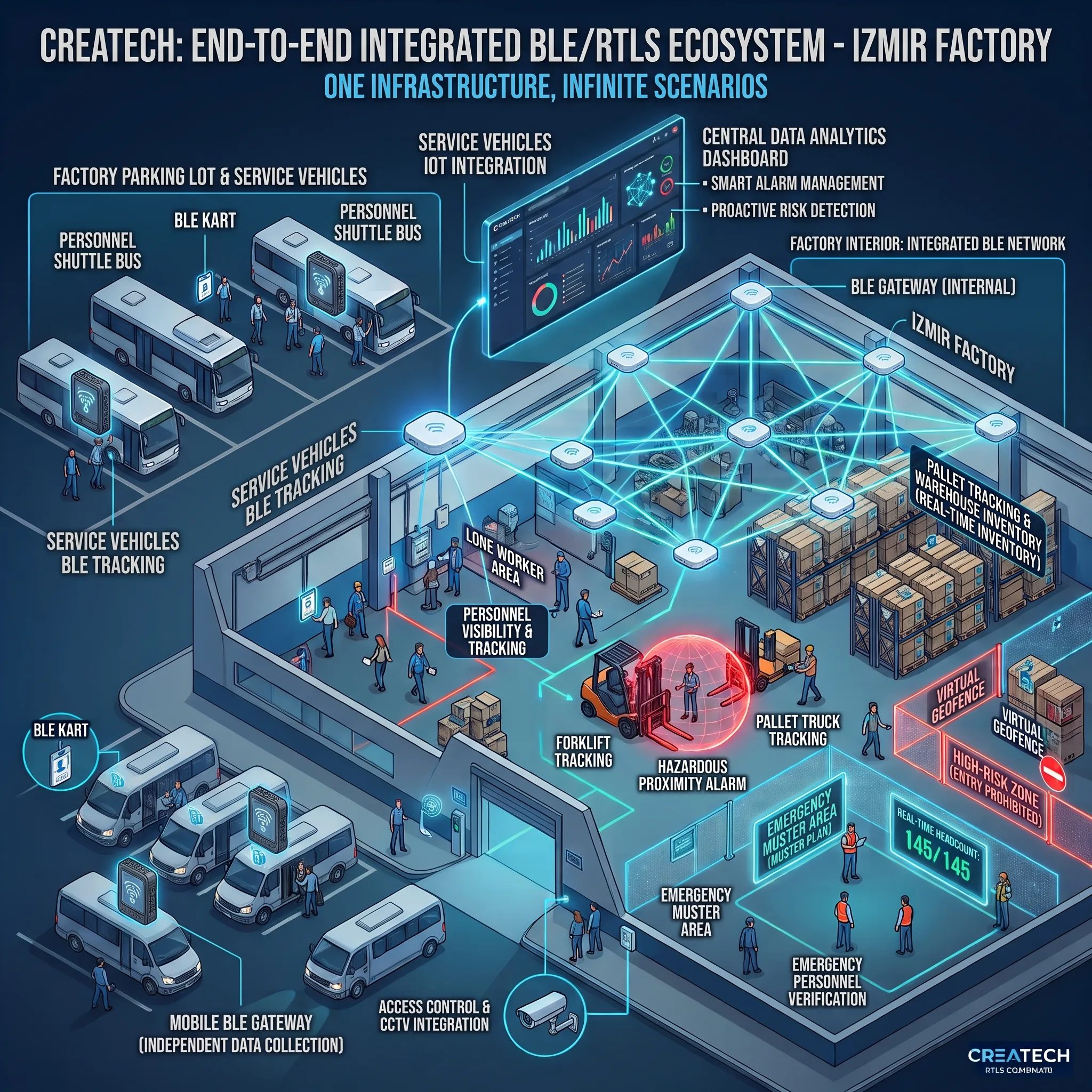

Diagram of the Createch end-to-end integrated BLE/RTLS ecosystem: the in-plant BLE gateway network, staff and forklift tracking, dangerous-proximity alarms, pallet tracking and warehouse counting, virtual geofences, the emergency assembly area, mobile BLE gateways on shuttle vehicles and the central data analytics dashboard.
DIAGRAM · BLE / RTLS ECOSYSTEM One infrastructure, unlimited scenarios: the in-plant BLE network, mobile gateways on shuttle vehicles and central analytics all meet on the same location and identity layer. Open full size

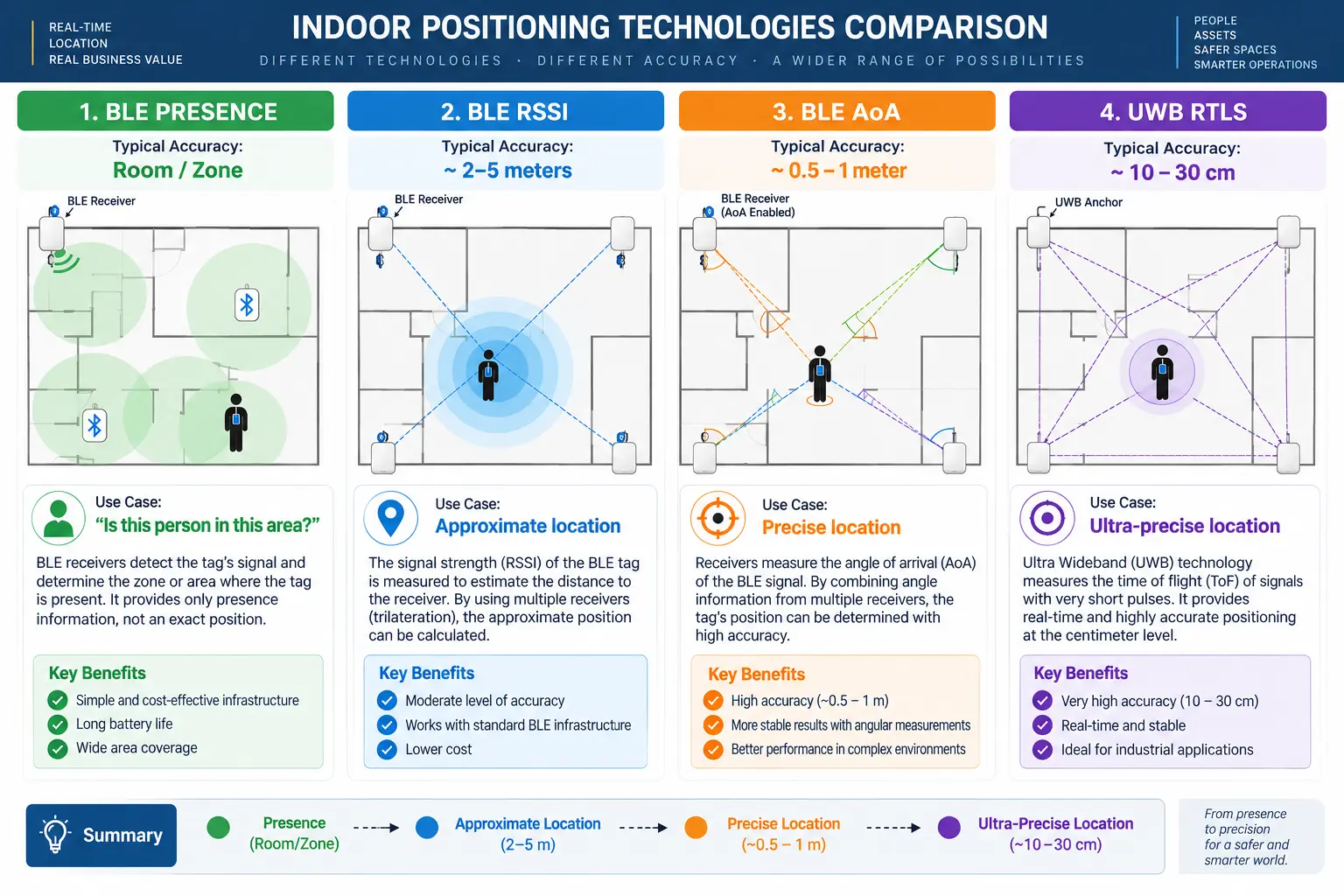

A diagram comparing BLE positioning technologies.
DIAGRAM · BLE POSITIONING TECHNOLOGIES Position accuracy is chosen to fit the need: from proximity-based zone detection to angle measurement with AoA, different methods can be used together on the same BLE infrastructure. Open full size
FIELD TEST · RTLS INTERFACE

Four screens from the Createch BLE Monitor and BLE Setup interface: live monitoring, system definitions, an emergency drill and retrospective trace analysis. The images are from a simulation environment running on demo data.

Open the images full size

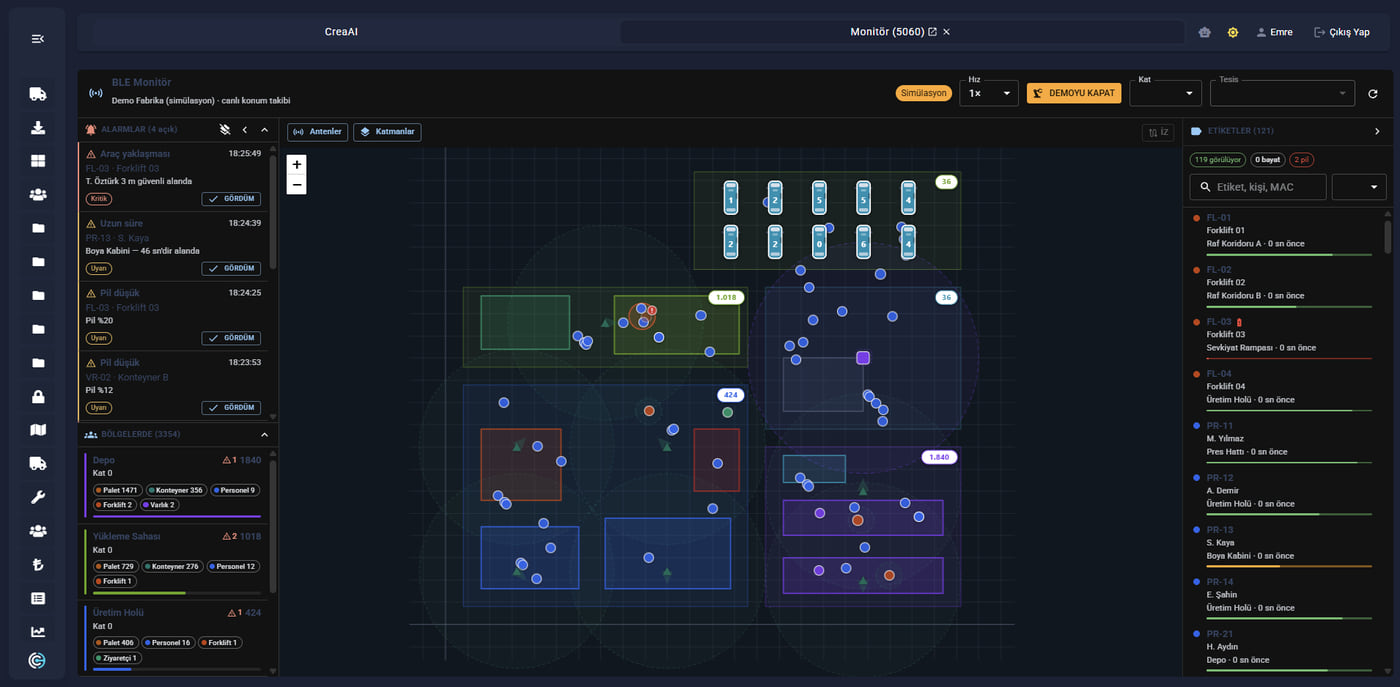

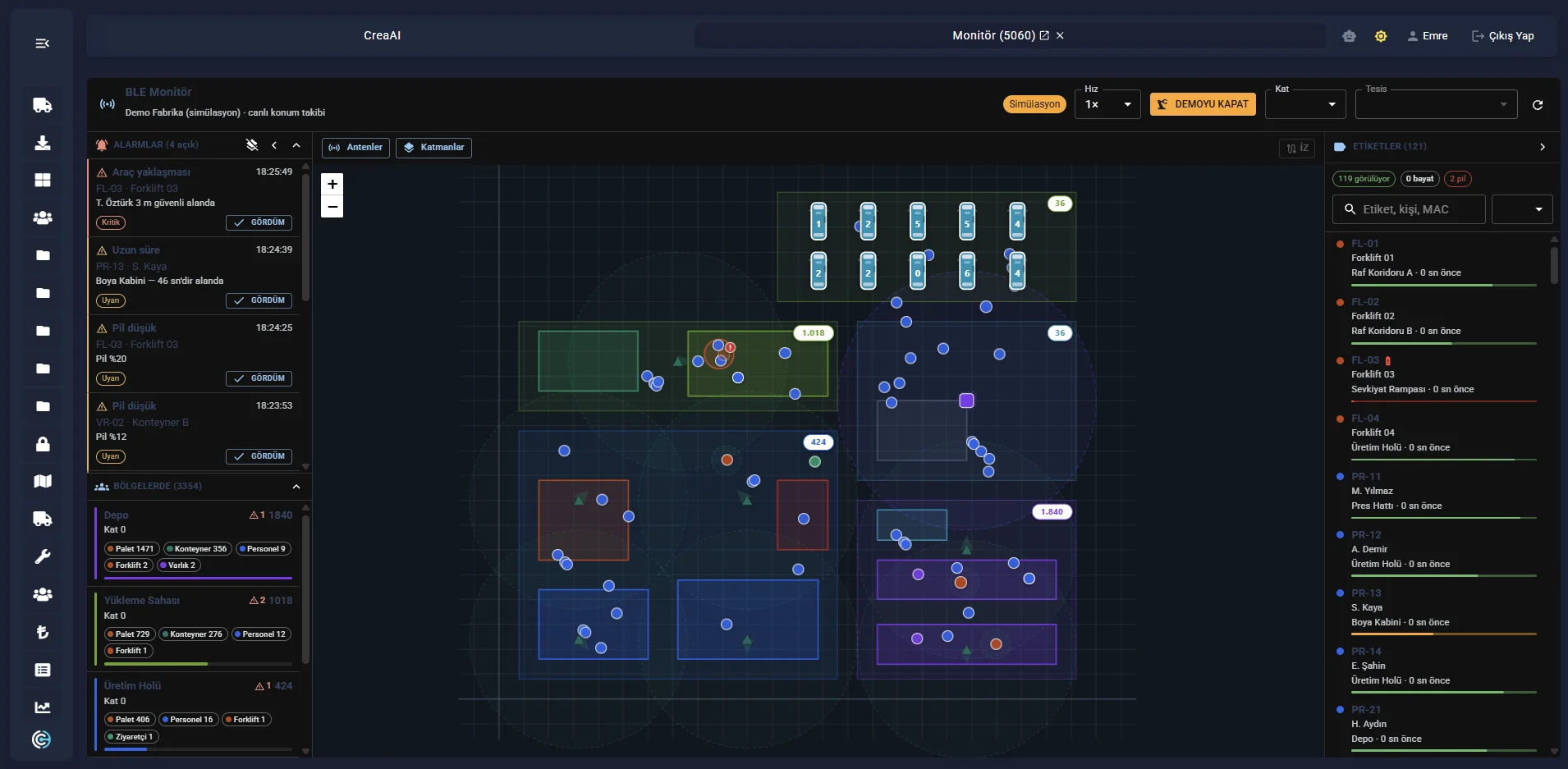

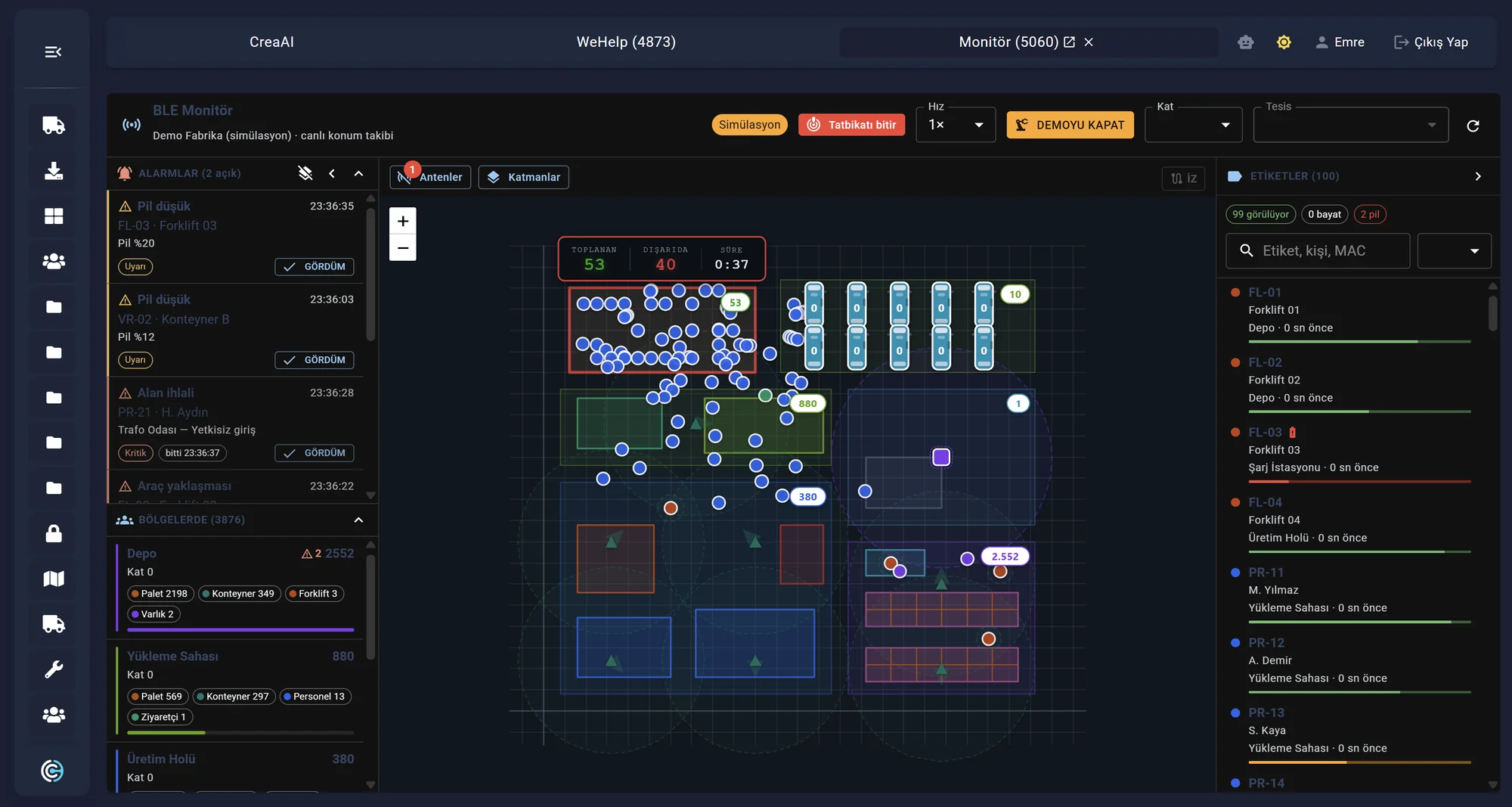

The BLE Monitor live position screen: real-time tag positions on the site plan, gateway coverage areas, per-zone counts and the list of open alarms.
01 · LIVE POSITION Real-time position on the plan

The live position of every tag on the site plan, together with gateway coverage areas. The left panel shows open alarms and per-zone counts; the right panel lists the tags and when each was last seen.

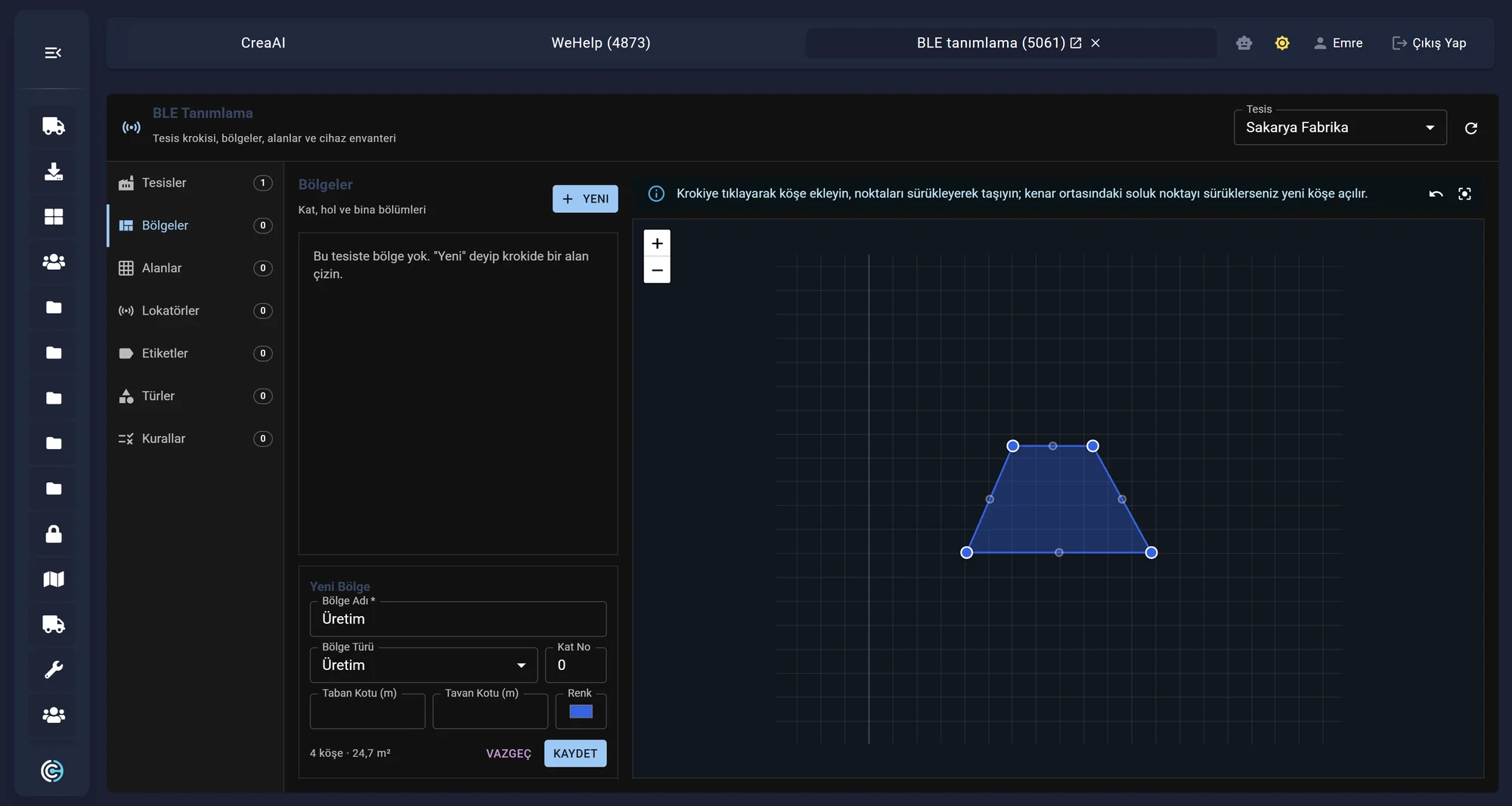

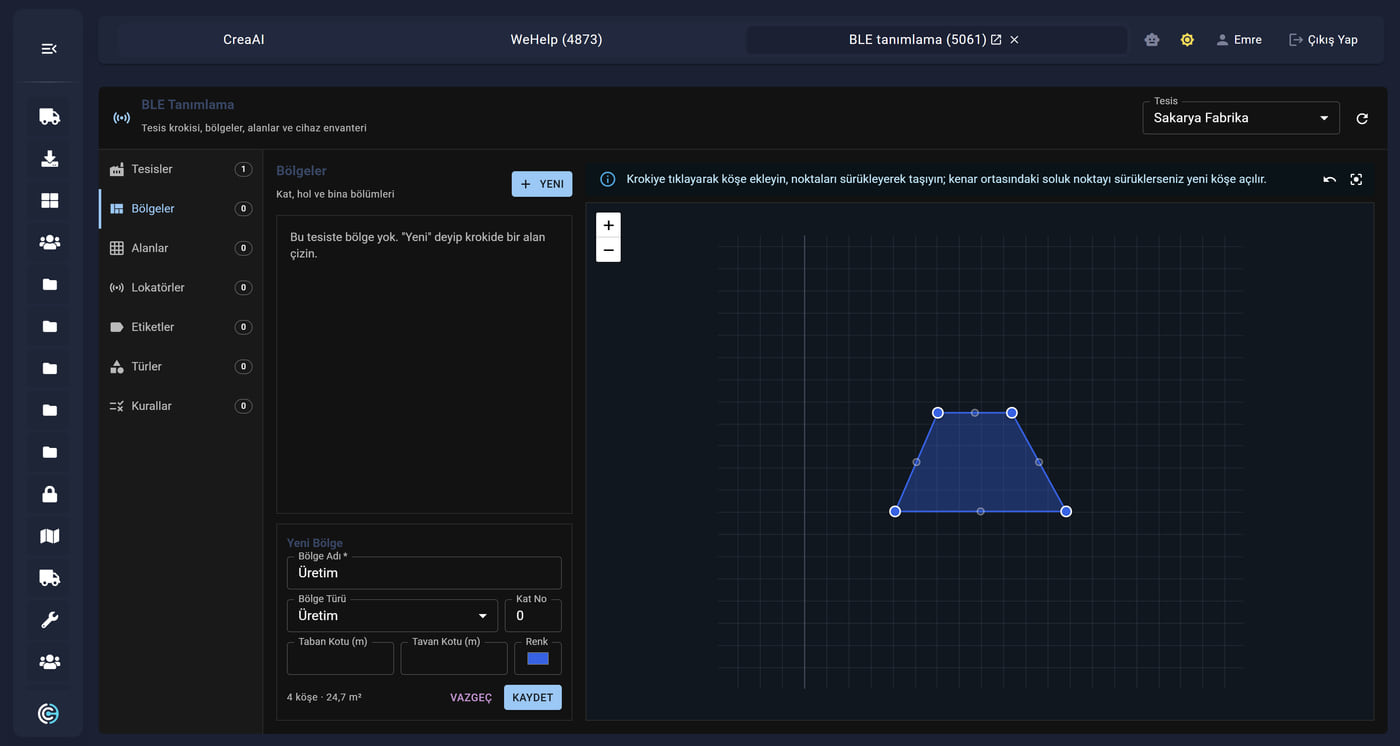

The BLE Setup screen: drawing zones on the site sketch, site and floor definitions, the locator and tag inventory, and alarm rules.
02 · SETUP Site, zone and device inventory

Zones are drawn on the site sketch and floor, zone type and level details are entered. Locator, tag, type and alarm rule definitions are all managed from the same screen.

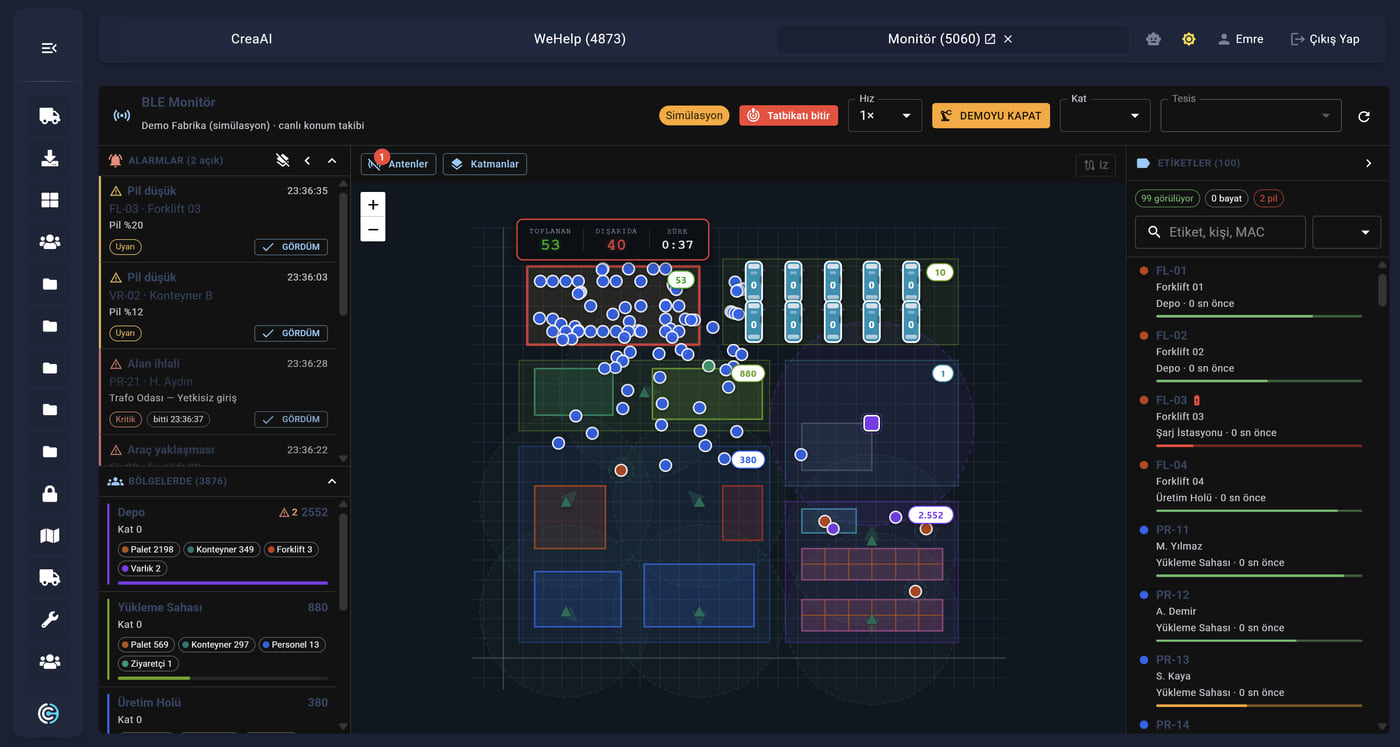

BLE Monitor drill mode: live tag positions on the site plan, counters for staff assembled and still outside, low-battery and unauthorized-area alarms, and a tag search panel.
03 · DRILL MODE Assembled and still-outside counts

When an emergency or drill is started, the number of people who have reached the assembly area and the number still outside are tracked along with elapsed time. Low-battery and unauthorized-area alarms appear on the same screen.

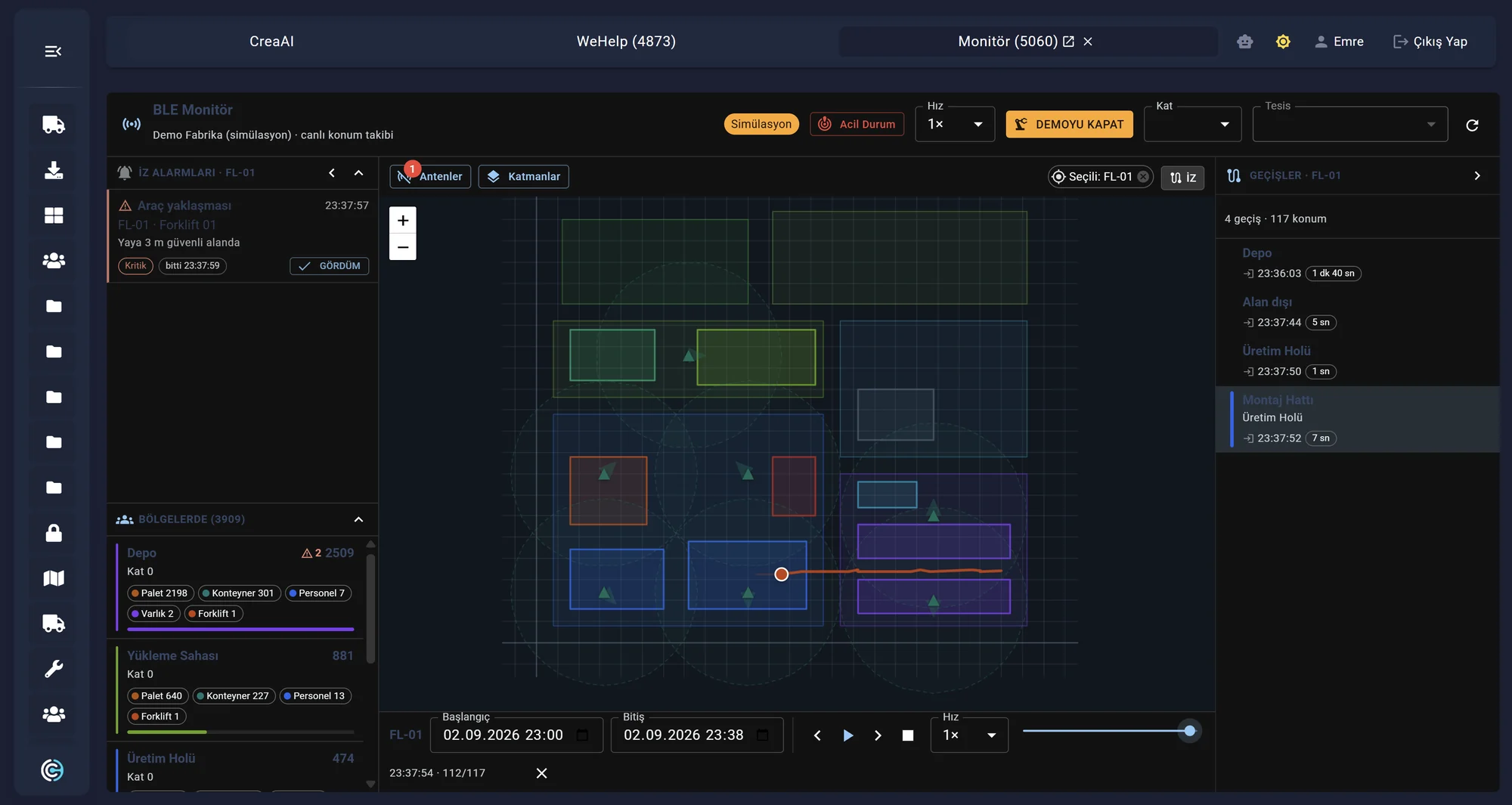

The BLE Monitor trace analysis screen: the movement trace of the selected forklift tag drawn on the plan, a transition log listing zone crossings with their durations, and a playback bar with a time-range selector.
04 · TRACE ANALYSIS Historical trace and zone crossings

The trace of a selected tag over a chosen time range is drawn on the plan and played back and forth with the time bar. Zone crossings are listed with their durations, so post-incident review is done from the record.

  1. 01 · FIELD BLE Kart / Tag

    The battery-powered broadcast unit carried by staff, forklifts, pallets and equipment.

  2. 02 · SENSING Gateway / Locator

    Field devices receive the BLE broadcasts and relay them to the center.

  3. 03 · PROCESSING RTLS Engine

    The broadcasts are turned into position data by the central engine.

  4. 04 · OUTPUT Map & Alarms

    Position is shown on the map, and rule breaches raise an alarm.

FIELD IMAGES · APPLICATION EXAMPLES

What the location layer looks like in the field: live tracking of a moving vehicle, density distribution over a floor plan, and location data watched alongside camera footage. The images are from reference installations and validation rigs.

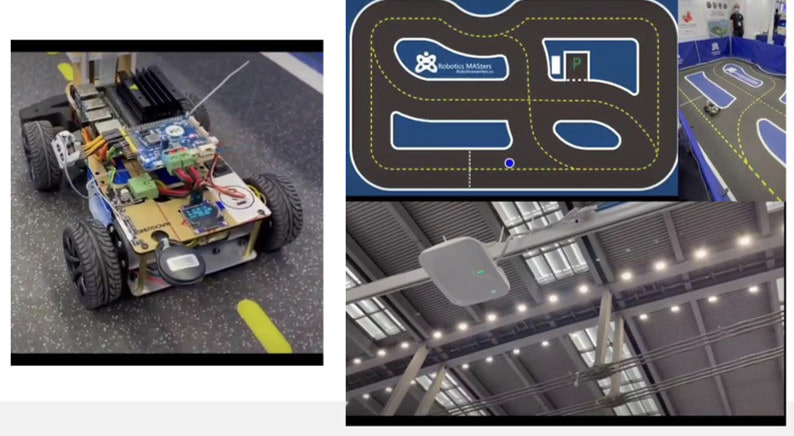

A BLE RTLS validation rig: an autonomous vehicle prototype running a reference course, the vehicle's live position marked on the digital course plan, and a BLE gateway mounted on an industrial steel roof.
01 · VALIDATION RIG Moving vehicle, live position

An autonomous vehicle running a reference course is picked up by ceiling-mounted BLE gateways and its position is marked on the digital plan in real time. Position accuracy and latency are measured on rigs like this.

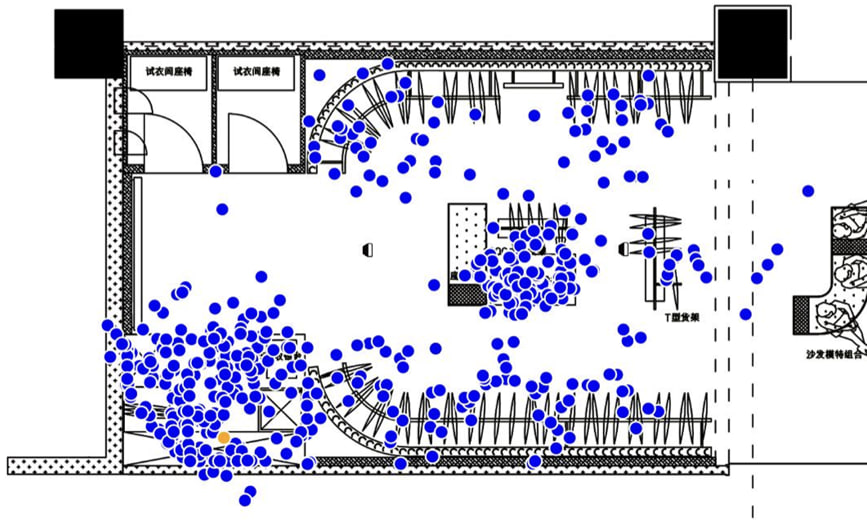

A BLE RTLS location cloud overlaid on a retail store floor plan, with blue position points clustering at the fitting rooms and in front of the aisles.
02 · RETAIL Density distribution on the floor plan

A location cloud overlaid on the store plan shows how much time is spent in which aisles and zones. The same data can be used for layout planning, shift planning and measuring the impact of a campaign.

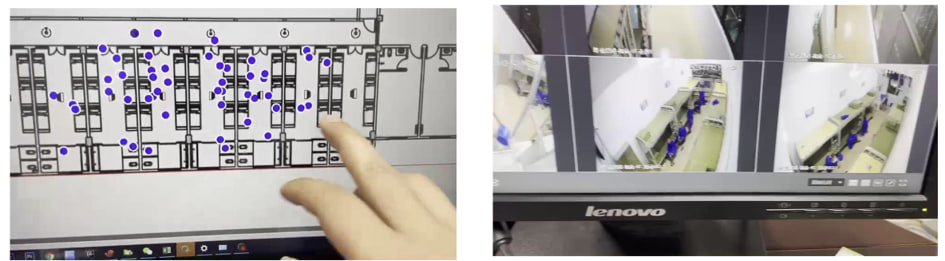

A healthcare application: BLE location points marked on a patient-room floor plan, and the operator screen where those same markers are overlaid on live camera images.
03 · HEALTHCARE SITE Plan and camera image on one screen

The positions of staff, patients and equipment are marked both on the floor plan and on the live camera image. The operator does not have to switch between screens to confirm an alarm: the location and video layers meet in one interface.

Low Power

Suitable for battery-powered card and tag designs; broadcast interval and battery life are optimized together.

Flexible Coverage

Zone detection and precise positioning can be used together in the same project: each area gets just as much technology as it needs.

One Identity

The same BLE card can be used in the plant, on the shuttle vehicle and in other processes; the identity layer is never split.

WHY RSSI AND AoA TOGETHER?

The RSSI-based approach answers “which section or zone?” economically. AoA measures the angle at which the signal arrives, allowing more precise X-Y positioning in critical areas.

That allows a hybrid architecture rather than fitting the whole plant with expensive AoA infrastructure.

AoA · ANGLE OF ARRIVAL

Angle of Arrival:
precise position from angle of arrival

Improves position accuracy by measuring the angle at which the BLE signal reaches the antenna array.

The antenna array on an AoA Locator analyses the phase differences a BLE Direction Finding signal produces across its antennas. Using I/Q samples, antenna geometry and positioning algorithms it calculates azimuth, and with suitable hardware and installation, elevation as well.

The angles measured by several Locators are assessed together to estimate the tag's position. This approach gives higher spatial accuracy than proximity information alone.

  1. 01 BLE CTE

    The Direction Finding signal (Constant Tone Extension) is broadcast.

  2. 02 Antenna Array

    The phase differences across the Locator antennas are detected.

  3. 03 I/Q Samples

    Raw I/Q samples are processed together with the antenna geometry.

  4. 04 Angle Calculation

    Azimuth — and with a suitable installation, elevation — is calculated.

Positioning technologies and where each is used
Technology Measurement Use Case
BLE RSSI Signal strength Zone / section detection
BLE AoA Angle of arrival Precise positioning
Channel Sounding Distance Next-generation precise ranging
UWB Time / distance Very high precision
HYBRID PLATFORM

Hybrid BLE
Location Platform

Using the right measurement technology in the right area raises the return on the investment.

Standard Areas

Offices, canteen, general warehouse: RSSI zone detection gives sufficient accuracy economically.

Critical Areas

Forklift routes, production and loading areas: precise X-Y positioning with AoA comes into play.

Mobile Areas

Shuttle vehicles: an in-vehicle BLE Gateway and a 4G/5G connection carry coverage beyond the site.

  1. 01 Staff / Tag

    Card and tag broadcasts originate in the field.

  2. 02 BLE Infrastructure

    The Gateway and Locator network collects the broadcasts.

  3. 03 RSSI + AoA

    The measurement method is chosen to suit the area.

  4. 04 Createch Platform

    All data comes together on one platform, and modules are added to it.

PRINCIPAL USE CASES
  • Staff tracking: In-plant zone and position, entry/exit and operational flow.
  • Forklift tracking: Position, route, density and utilization analysis.
  • Dangerous proximity: Risk rules based on staff-to-forklift distance, direction and speed.
  • Pallets and equipment: Inventory visibility by last seen position, time and area.
  • Warehouse counting: Supports automatic zone-based control of BLE-tagged assets.
  • Scalability: Once the BLE network is in place, new tag types and software modules can be added to the same platform.
FORKLIFT SAFETY

Dynamic risk analysis:
not proximity, but the approach vector

Combining proximity with direction of travel and speed builds far more meaningful safety scenarios.

Caution Zone

The approach is tracked and an event record can be created, gathering data before intervention is needed.

Risk Zone

Warnings can be raised for both driver and pedestrian, and the system steps in when the approach threshold is crossed.

Critical Zone

A high-priority alarm and integration scenario that works alongside your existing safety systems.

The system can weigh more than the distance between forklift and pedestrian: it can take the forklift's direction of travel, its speed, the person's position and the approach vector together. In an advanced model, calculations similar to TTC (Time To Collision) make the risk level dynamic.

  1. 01 Location

    Forklift and pedestrian positions are read at the same time.

  2. 02 Speed + Direction

    The movement vector is derived from position history.

  3. 03 Approach

    The approach vector and estimated time to contact are calculated.

  4. 04 Risk / Alarm

    Depending on the risk level, a record, a warning or an alarm is raised.

ENGINEERING NOTEE

In safety-critical applications, central RTLS should be designed as a layer that supports — and a complementary layer does not replace — the local sensors and warning systems on the vehicle.

CCTV + AI

the BLE infrastructure
a second, complementary layer

A complementary approach that uses video analysis to reveal cases where the card is not carried or there is no signal.

A COMPLEMENTARY CREATECH R&D CAPABILITY

Thanks to the CCTV integration and AI models developed by our R&D team, if a person detected in camera footage is in a zone with no matching BLE staff card signal, the system can treat that as a “card-less person” event event.

That way the scenarios BLE RTLS cannot see on its own — a card not being carried, or no card signal at all — are covered by video analysis.

  1. 01 Camera: Human Detection

    The AI model detects human presence in the image.

  2. 02 Zone Matching

    The camera's field of view is matched to the RTLS zone.

  3. 03 BLE Card Signal?

    The system checks whether there is a card signal in the same zone.

  4. 04 Card-less Person Event

    If there is no match, an event is raised and sent to the people concerned.

CCTV + AI

Detects human presence together with the relevant camera and zone.

BLE RTLS

Provides the identity and position of the staff cards present in the zone.

Createch Rule Engine

Compares AI human detection against BLE card presence by time and by zone.

This capability is not an alternative to the BLE system. It is a second sensing layer that complements the RTLS infrastructure by confirming human presence in the physical world with a camera. The reliability of the project no longer depends on card-wearing discipline alone.

UNBROKEN IDENTITY

Plant + shuttle vehicle:
one BLE identity

A staff card does not stop working when it leaves the factory gate.

A BLE Gateway fitted to a shuttle vehicle can read the same staff card used in the plant. The gateway sends data to Createch Cloud over the vehicle telemetry unit or a 4G/5G connection.

That lets a person boarding the shuttle, arriving at the site and moving around inside it all be joined under the same digital identity: shuttle occupancy analysis, transport processes, entry/exit flow and in-plant RTLS data are related on one platform.

  1. 01 BLE Staff Card

    The same card used in the plant is carried.

  2. 02 Shuttle Gateway

    The in-vehicle Gateway detects and records the card.

  3. 03 4G / 5G

    Data is carried by the telemetry unit or over the mobile network.

  4. 04 Createch Cloud

    The flow is related to the in-plant RTLS data.

07:31

Staff member detected on the shuttle vehicle.

07:54

The shuttle reached the plant site.

08:03

Staff member seen in the production zone.

FIELD ENGINEERING

Site design and
engineering criteria

Real accuracy has to be assessed together with the RF environment, Locator geometry, mounting and calibration.

  • Multipath: RF reflections from metal racking, machines and surfaces can affect the measurement.
  • Locator geometry: In precision areas the aim is for the tag to be seen by several Locators from suitable angles.
  • Mounting: Antenna orientation and mounting height directly affect coverage geometry.
  • Calibration: Site calibration and acceptance testing should be carried out with measurement points across a pilot area.
  • Tag broadcast interval: Position update rate and battery life have to be optimized together.
  • Hybrid installation: AoA should be used only in areas where the precision creates business value.
PROJECT APPROACH

An accuracy commitment should be defined only after a site survey, RF analysis and a pilot installation. That produces a measurable acceptance criterion based on real plant conditions rather than a theoretical figure.

DIGITAL INFRASTRUCTURE

Not a tracking system, but a
digital infrastructure

The Createch BLE Location Platform brings different operations together on the same location and identity layer. Infrastructure that starts with staff tracking can grow into forklift safety, pallet and equipment tracking, warehouse counting, shuttle vehicles and CCTV/AI verification.

1 Infrastructure

One shared BLE network across plant and mobile operations, so the investment is not tied to a single problem.

Multiple Assets

Staff, forklifts, pallets and equipment all meet on the same location and identity layer.

Complementary AI

Human detection by CCTV and the card-less person event: a second sensing layer in action.

OUR APPROACH

Solving today's need while running tomorrow's use cases on the same infrastructure, so the investment is not tied to a single problem.

02 CREAAI

In-house AI
that talks to your platform data

CreaAI is an in-house artificial intelligence layer that runs inside the platform. Live data from the field is indexed as vectors and interpreted together with a language model; the question asked is answered within seconds, and the same result turns into an Excel report.

BLE location data, drum status, geofence breaches, event records and production data collected from factory machines all accumulate on the same platform. CreaAI sits on top of that: instead of raising a report request, building a filter or hunting for the right screen, you ask the question in your own words.

The model is hosted on the infrastructure the platform runs on. Questions and records are never sent to a third-party AI service; the answer is built from the organization's own data, and the records it came from are listed.

01 · LIVE DATA

Platform data flows in

Location, telemetry, sensor, alarm, event and production records land in CreaAI's data layer the moment they are created on the platform. There is no separate transfer job or overnight batch load to wait for.

02 · VECTOR INDEX

Data becomes vectors

Records and text are converted into embedding vectors and stored in a meaning-based index. Similar records sit next to one another in that space, so search works on meaning rather than keywords.

03 · LLM REASONING

The model reasons with context

The vectors closest to the question are selected and given to the in-house language model as context. The answer is built from the organization's real records, not the model's general knowledge.

04 · ANSWER AND REPORT

An answer or a file

The result appears in the chat as text and a table. The same result can be turned into an Excel, CSV or PDF file and shared in one step.

THE DECISIONS BEHIND THE FLOW
  • Meaning-based search: "The drum emptied", "discharge took place" and "the pour finished" are worded differently but land in the same region of the vector space.
  • Current context: The index refreshes as data is created, so a record entered today can be used in a question asked the same day.
  • Numerical accuracy: Operations such as totals, averages and sorting are not left to the language model; they are computed in the platform's own query layer.
  • Source citation: The records each answer was produced from are listed, so the result can be traced back to its source.
  • Permission filter: The vector search is limited by the asking user's platform permissions; a record outside those permissions never enters the context.
  • Modular connection: When a new module is added to the platform its data flows into the same index; no separate development is needed for CreaAI.
ANSWERS IN PLAIN LANGUAGE

Write the question,
read the answer

Using CreaAI needs no query language, report design or knowledge of the screens. You write the question in everyday language, and the answer comes back as text, a table and a short comment together.

Which records were used appears beneath the answer. To narrow the result, move it to a different period or change the breakdown, you simply carry on in the same conversation.

  • Follow-up questions: When you say "now produce the same list for the previous shift", the context is kept and the question is not rebuilt from scratch.
  • Mixed questions: Data from different modules — BLE location, drum status, event records — can be combined in a single answer.
  • Short comment: Alongside the figure, the notable deviation and any recurring pattern are summarized too.
CREAAI · PLATFORM ASSISTANT LIVE DATA · CONNECTED
User

Rank the lines with the most downtime last shift, and the causes, by duration.

CreaAI

I scanned 412 event records from the night shift. Total downtime 96 minutes; the three longest causes are below.

LineDowntime causeDuration
Line 3Feed wait38 min
Line 1Sensor alarm24 min
Line 3Operator intervention17 min
Line 2Maintenance11 min
Line 4Material change6 min

The feed waits on Line 3 recur in all of the last three shifts; you may want to look at them alongside the forklift position records.

Download as Excel Turn into a chart Source records
Sample use — the CreaAI chat interface. The data is arranged for illustration.
EVERY PLATFORM MODULE IN ONE CONVERSATION
  • AUTOMATION

    List the vehicles that breached a geofence this week and how long each breach lasted.

    Boundary breach records are grouped by vehicle and zone, xlsx can be downloaded.
  • BLE PLATFORM

    Which zones had the most forklift-to-pedestrian near misses yesterday?

    RTLS trace records zone and hour breakdown, with risk density ranked.
  • DRUM AUTOMATION

    Show the mixers that discharged outside the plant yesterday.

    Geofence breaches by drum status assessed on the same time axis.
  • FACTORY INTEGRATION

    Report the machines with the most faults last month and their downtime.

    PLC and SCADA event records are collected per machine and downtime cause grouped accordingly.
  • ENVIRONMENTAL MONITORING

    Report the sensors that breached a threshold this week and for how long.

    Sensor, threshold, duration and recurrence count in one table, with an optional PDF summary.
  • FLEET

    List the 5 vehicles with the highest fuel consumption per km last month.

    Trip and fuel records are combined per vehicle and summarized by deviation is calculated.
REPORT GENERATION

The same question,
this time as an Excel file

The answer on your screen turns into a shareable file in one step. Columns, breakdown and sort order are built exactly as the question described them, with no template to prepare.

downtime-analysis-night-shift.xlsx GENERATED BY CREAAI
Line Downtime cause Events Total duration Avg. duration Share
Line 3Feed wait938 min4.2 min40%
Line 1Sensor alarm624 min4.0 min25%
Line 3Operator intervention417 min4.3 min18%
Line 2Maintenance211 min5.5 min11%
Line 4Material change36 min2.0 min6%
Sample output — the workbook produced in response to the question above. The data is arranged for illustration.
01 · XLSX

Excel Workbook

Headers, formatting and number alignment come ready. Summary and detail can be produced on separate sheets, and the file is ready to share as it is.

02 · CSV

Raw Data Export

A raw table for moving into your own analysis tools, with column order and encoding kept fixed.

03 · PDF

Management Summary

A one-page summary you can take into a meeting, with a short comment and a chart beside the table.

04 · SCHEDULING

Recurring Report

A question asked once can be made recurring: the report is produced automatically on the chosen day and time and sent to the people concerned.

IN-HOUSE MODEL

The model inside the organization,
the data inside it

CreaAI is an in-house model: it is hosted on the infrastructure the platform runs on. Questions, records and the reports produced are never sent to a third-party AI service.

Data Stays Inside

The model and the vector index run on the platform's own infrastructure. Location, production, staff and customer data never leaves the organization, and no query is sent to a service open to the internet.

Permission-Aware Answers

CreaAI sees only the data the asking user's platform permissions allow. A record the user cannot see on screen cannot enter the answer either.

Traceable Result

Every answer lists the records it was produced from. A line in the report can be traced back to its source record, so the result stands up to audit.

INSTALLATION AND OPERATION
  • On-premises or private cloud: The model can run on your existing platform servers or in a private cloud environment of your own.
  • Record keeping: Questions, the answers produced and the reports downloaded are all logged per user.
  • Scope limitation: Which modules' data enters the index is decided by the organization.
  • Verification: For critical reports, an audit view is provided that lets the answer be compared against the source records.
CRITICAL CHALLENGES

The critical challenges
the sector faces

Scattered data sources, legal compliance obligations and a lack of machine visibility all hit production directly.

01 · VISIBILITY

Scattered, Untrackable Processes

When data from different equipment and vehicles cannot be gathered in one place, operational visibility is severely limited.

02 · COMPLIANCE

Site Safety and Compliance

Balancing legal obligations — such as no camera recording in restricted zones — against site safety is getting harder.

03 · EVENT RECORD

Missed Incidents

Not being able to reach camera footage in time at critical moments makes incidents hard to analyze and act on.

04 · PRODUCTION

No Visibility Into Factory Machines

Not being able to pull data from robot and machine controllers makes bottlenecks in production impossible to find.

03 DRUM AUTOMATION

Mixer drum automation: full control of mix quality

Our automation solution, developed specifically for the concrete and cement sector, detects in real time whether the mixer drum is turning, in which direction and at what speed.

Recording this data continuously provides both quality assurance and operational transparency.

01

Live Monitoring

Sensor technology tracks the drum's rotation direction, speed and status continuously.

02

Automatic Recording

Mixing data is logged with a timestamp, documenting the whole process.

03

Pour Alarm

If a vehicle starts discharging outside its assigned site, the system raises an alarm immediately.

04 GEOFENCE

Smart pour control with geofencing

Our system analyses the rotation direction of the mixer drum continuously to detect the moment of discharge automatically. The algorithm reads drum movement in real time and establishes, from position data, which geographic zone the concrete was poured in.

If a pour takes place outside the operating zones defined in advance, the system steps in immediately: it raises an audible and visual alarm and notifies the control center automatically. The speed at which the product was mixed on its way to the site is also logged.

01

Discharge Moment Detection

Continuous analysis of drum rotation direction establishes the moment discharge starts automatically.

02

Position-Based Verification

Which geographic zone the concrete was poured in is confirmed from position data and recorded.

03

Mixing Speed Log

The speed at which the product was mixed on its way to the site is logged.

04

Out-of-Zone Alarm

Pour attempts outside the defined zone raise an audible and visual alarm and notify the center automatically.

05 CAMERA MANAGEMENT

Automatic camera shutdown in restricted zones

At some facilities camera recording is prohibited by law for operational reasons. With Createch's geofence-based camera management system those facilities are marked once on a digital map. The moment a vehicle crosses into the defined facility boundary the cameras switch off automatically, and they come back on when it leaves the site.

This arrangement both guarantees legal compliance and keeps the entire safety record outside the facility unbroken. No manual intervention by operators is needed, the risk of error drops to zero, and legal obligations are managed systematically.

01

Zone Definition

Restricted facilities are marked once on the map, and the system remembers those boundaries permanently.

02

Automatic Activation

Cameras switch off as the vehicle crosses the boundary and back on as it leaves — no driver action needed.

03

Full Audit Trail

Logging when and where the camera switched off and on produces a compliance record.

04

Central Management

Zone rules for every vehicle are updated from one platform and monitored in real time.

06 EVENT-BASED RECORDING

Event-based camera recording

When a defined event occurs, recording is triggered automatically, and the footage from before and after is merged into a single file and sent to the people concerned.

Event Moment Detection

When an event defined on the system occurs, the camera system is triggered immediately and recording begins.

Merging Before-and-After Footage

Footage from before and after the moment of the event is merged automatically and archived as a single file.

Instant Delivery to the Right People

The merged event footage reaches the people concerned immediately, enabling strong remote analysis and fast decisions.

07 FACTORY INTEGRATION

Every machine in one place

We pull data directly from the controllers of factory robots, CNC machines and production equipment (PLC, SCADA, CNC) and bring it together on one central platform.

That makes live status, performance and fault information for every piece of production equipment visible on one screen, and predictive maintenance data keeps unplanned downtime to a minimum.

01

Controller Integration

Data is pulled directly from PLC, SCADA and CNC controllers, bringing different brands and protocols into one structure.

02

Live Status and Performance

The status, performance indicators and fault information of every robot and machine are monitored from one screen.

03

Predictive Maintenance

Analysing the data collected creates the chance to act before a fault occurs, reducing unplanned downtime.

08 RESULTS

Measurable operational benefits

The concrete gains factory automation integration delivers in production processes.

100%

Machine Visibility

The status of every robot and machine in the plant is monitored live from one platform.

60%

Faster Fault Detection

A central data flow means faults are found faster and response time is shorter.

40%

Less Downtime

Predictive maintenance data keeps unplanned downtime to a minimum.

95%

Data Availability

Data integration from machines of different brands and protocols is handled in one structure.

09 WHY CREATECH

Why choose Createch
solutions?

Home-grown engineering strength, sector experience and a way of working focused on measurable results.

Home-Grown R&D

Through our in-house R&D center we develop innovative, sustainable solutions built for the needs of industry.

Sector Expertise

Many years of experience in the sector mean we know the operational needs of sector leaders at first hand.

Continuous Support

Our expert technical team provides fast, effective service to keep your operations running.

Measurable Results

The solutions are designed to deliver concrete efficiency gains and cost savings in operational processes.

10 CONTACT

Take your operations into the future

Digitize your processes, monitor your machines and take full control of the field with Createch's industrial automation solutions. From mixer drum automation to factory machine integration, and from geofence-based camera management to event-based recording, we put together solution packages for your specific needs.

Get in touch for detailed information, project consultancy and demo requests. Our technical team is ready to put together an automation solution for you.
